Sichuan Magunion Technology Co., Ltd Create Customer Value Achieve Magunion Dream
7 Years
| Ask Lasest Price | |
| Brand Name : | Magunion |
| Certification : | IATF16949, ISO9001 |
| Price : | USD 0.05-1 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 Tons per Year of Ferrite Magnet |
| Delivery Time : | 10-15 days |

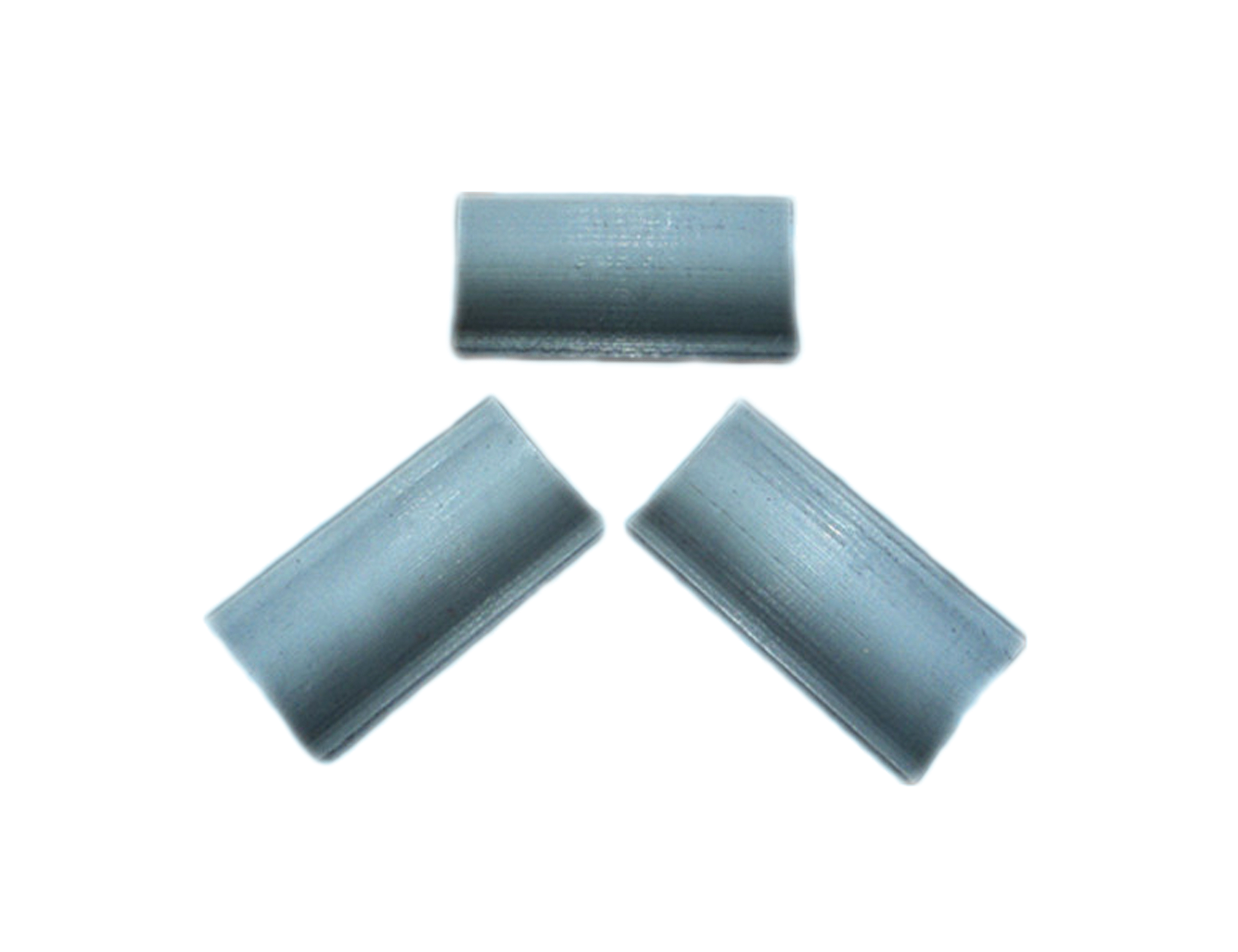

Segment Ferrite Magnet for Autotive 400W EPS Motor / Strontium Ferrite Magnet
Quick Details:
1. Application: Automotive EPS ( Electric Power Steering ) motor
2. Material grade: LT06, LT08, LT10
3. Shapes: arc, segments
4. Type: permanent ferrite magnet, sintered ferrite magnet
Permanent ferrite magnet is one of the most cost effective magnetic materials. Composed of Barium or Strontium ferrite, these materials exhibit good resistance to demagnetiztion, and are the lowest cost materials available today. It has a fair to good resistance toward corrosion and it can operate in moderate heat. Ceramic magnet has low energy product and they are usually used in assemblies containing mild steel. Sintered ferrite magnets are hard and brittle and are extensively used in home appliances, automotive, magnetor, separators, etc.
Applications:
Permanent magnet DC motor
Speaker
Magnetron
Magnetor
Passive magnetic energy
Instrument and Meters
Toys
Arts and crafts
Advertisement
Training aid
Magunion Advantages:
Stable quality, good uniformity of performance and size
School-enterprise cooperation, provide professional customized motor magnet program.
Professional new production line, the delivery time of sample is on 7-10 days.
| Physical Characteristics | ||||||||
| Physical Properties | LT04 | LT05 | LT06 | LT07 | LT08 | LT09 | LT10 | LT11 |
| Temperature Range (℃) | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 |
| Electrical Resistivity (Ω·m) | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 |
| Density (g/cm3) | 4.8～5.0 | 4.8～5.0 | 4.8～5.0 | 4.8～5.1 | 4.8～5.1 | 4.7～5.0 | 4.8～5.1 | 4.7～5.0 |
| Recoil Permeability(rec) | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 |
| Curie Temperature θt(℃) | 460 | 460 | 460 | 450～460 | 450～460 | 450～460 | 450～460 | 450～460 |
| Temperature Coefficient of Remanence Br(%℃) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) |
| Linear Expansion Coefficient(10-6/℃) | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 |
| Magnet Properties | |||||||||
| Type (Magunion) | Type (TDK) | Properties | |||||||
| Br | Hcb | Hcj | BH(max) | ||||||
| Gs | mT | Oe | kA/M | Oe | kA/M | MGOe | kJ/m3 | ||
| LT01 | / | 3850±100 | 385±10 | ＞3100 | ＞246.8 | ＞3300 | ＞262.7 | 3.7±0.2 | 29.5±1.6 |
| LT02 | FB5B | 4100±100 | 410±10 | 3200±150 | 242.4±11.9 | 3500±150 | 278.6±11.9 | 4.0±0.2 | 31.8±1.6 |
| LT03 | / | 3950±100 | 395±10 | 3650±150 | 290.6±11.9 | 3900±150 | 310.5±11.9 | 3.8±0.2 | 30.2±1.6 |
| LT04 | FB6B | 4200±100 | 420±10 | 3800±150 | 302.5±11.9 | 4000±150 | 318.4±11.9 | 4.2±0.2 | 33.5±1.6 |
| LT05 | FB6H | 4000±100 | 400±10 | 3800±150 | 302.4±11.9 | 4500±150 | 358.1±11.9 | 3.7±0.2 | 29.4±1.6 |
| LT06 | FB9B | 4500±100 | 450±10 | 4300±150 | 342.2±11.9 | 4500±250 | 358.2±11.9 | 4.9±0.2 | 38.4±1.6 |
| LT07 | FBIH | 4300±100 | 430±10 | 4150±150 | 330.2±11.9 | 4800±250 | 382.1±11.9 | 4.4±0.2 | 35.0±1.6 |
| LT08 | FB12H | 4600±100 | 460±10 | 4300±150 | 342±11.9 | 5000±250 | 398.1±11.9 | 5.2±0.2 | 41.4±1.6 |
| LT09 | FB12B | 4700±100 | 470±10 | 4250±150 | 338.4±11.9 | 4700±250 | 374.2±11.9 | 5.4±0.2 | 43.1±1.6 |
| LT10 | FB9N | 4600±100 | 460±10 | 3500±150 | 278.5±11.9 | 3600±150 | 286.5±11.9 | 5.1±0.2 | 40.4±1.6 |
| LT11 | FB6N | 4400±100 | 440±10 | 3250±150 | 258.6±11.9 | 3300±150 | 262.7±11.9 | 4.5±0.2 | 35.9±1.6 |
|
|
