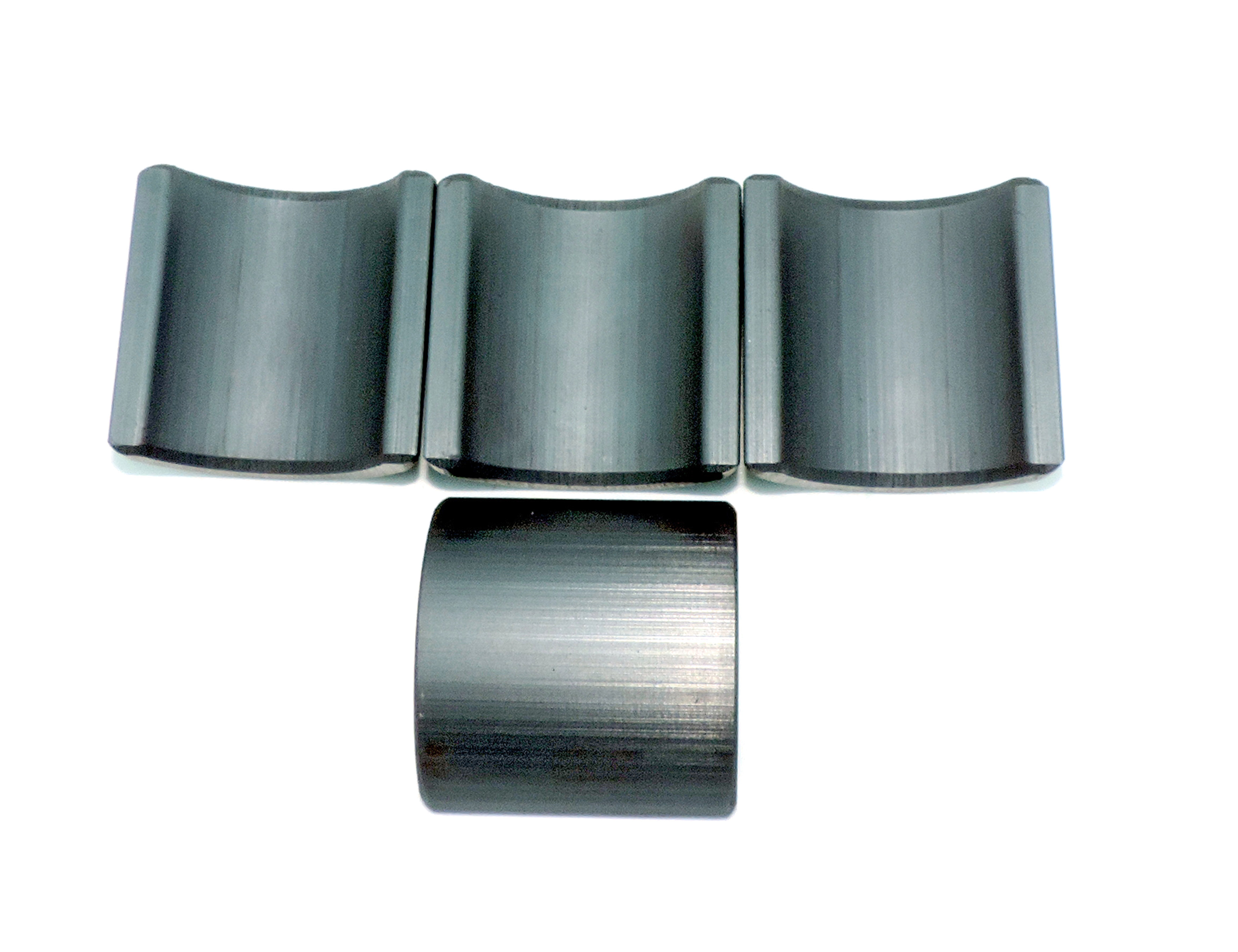

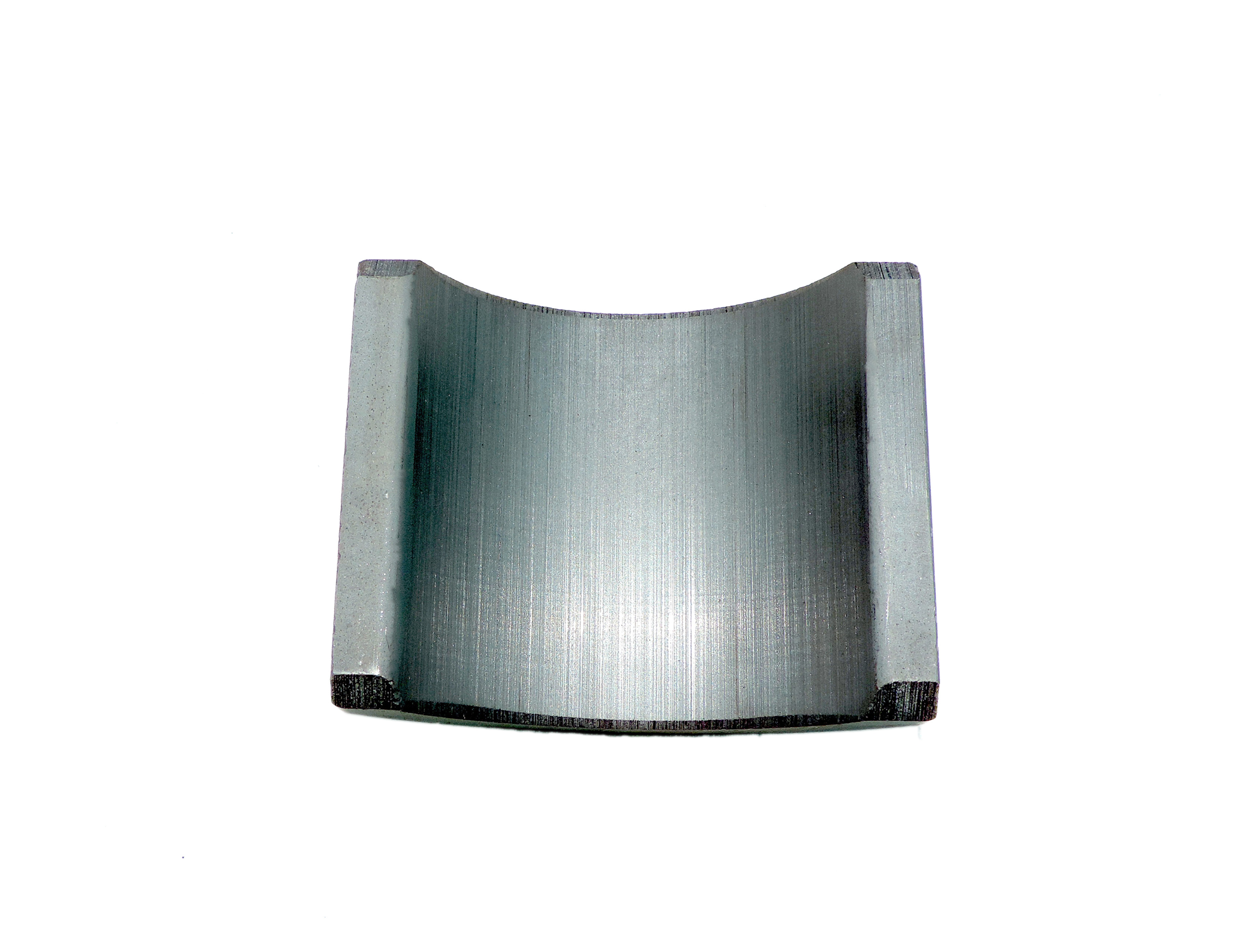

Sintered ARC Ferrite Magnets for Treadmill Motor , Permanent Ferrite Magnet
Quick Details:
1. Application: Treadmill motor
2. Material grade: LT02,LT03, LT05
3. Shapes: arc, block
4. Type: permanent ferrite magnet, hard ferrite magnet
5. Material: ferrite, strontium, La2O3, CoO
Ferrite magnet (Ceramic magnet) is one of the most cost effective magnetic materials. It is composed of Barium or Strontium ferrite, and exhibit good resistance to demagnetiztion. The materials are the lowest cost materials available today. It has a fair to good resistance toward corrosion and it can operate in moderate heat. Ceramic magnet has low energy product and they are usually used in assemblies containing mild steel. Sintered ferrite magnets are hard and brittle and are extensively used in cars, home appliances, fitness equipment, etc.
Applications:
DC motor
BLDC motor
Speaker
MRI
Separators
Passive magnetic energy
Toys
Arts and Crafts
Training aid
Magunion Advantages:
Stable quality, good uniformity of performance and size
School-enterprise cooperation, provide professional customized motor magnet program.
Professional new production line, the delivery time of sample is on 7-10 days.
Merchandise name:
Permanent magnet, pot magnet, powerful magnet, arc magnet, DC motor magnet, generator magnet, cylinder magnet, magnet material, magnetic product, permanent magnetic materials.
| Physical Characteristics | ||||||||
| Physical Properties | LT04 | LT05 | LT06 | LT07 | LT08 | LT09 | LT10 | LT11 |
| Temperature Range (℃) | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 | -40～+80 |
| Electrical Resistivity (Ω·m) | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 | 104～108 |
| Density (g/cm3) | 4.8～5.0 | 4.8～5.0 | 4.8～5.0 | 4.8～5.1 | 4.8～5.1 | 4.7～5.0 | 4.8～5.1 | 4.7～5.0 |
| Recoil Permeability(rec) | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 | 1.05～1.03 |
| Curie Temperature θt(℃) | 460 | 460 | 460 | 450～460 | 450～460 | 450～460 | 450～460 | 450～460 |
| Temperature Coefficient of Remanence Br(%℃) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) | -(0.18～0.2) |
| Linear Expansion Coefficient(10-6/℃) | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 | 9～15 |
| Magnet Properties | |||||||||
| Type (Magunion) | Type (TDK) | Properties | |||||||
| Br | Hcb | Hcj | BH(max) | ||||||
| Gs | mT | Oe | kA/M | Oe | kA/M | MGOe | kJ/m3 | ||
| LT01 | / | 3850±100 | 385±10 | ＞3100 | ＞246.8 | ＞3300 | ＞262.7 | 3.7±0.2 | 29.5±1.6 |
| LT02 | FB5B | 4100±100 | 410±10 | 3200±150 | 242.4±11.9 | 3500±150 | 278.6±11.9 | 4.0±0.2 | 31.8±1.6 |
| LT03 | / | 3950±100 | 395±10 | 3650±150 | 290.6±11.9 | 3900±150 | 310.5±11.9 | 3.8±0.2 | 30.2±1.6 |
| LT04 | FB6B | 4200±100 | 420±10 | 3800±150 | 302.5±11.9 | 4000±150 | 318.4±11.9 | 4.2±0.2 | 33.5±1.6 |
| LT05 | FB6H | 4000±100 | 400±10 | 3800±150 | 302.4±11.9 | 4500±150 | 358.1±11.9 | 3.7±0.2 | 29.4±1.6 |
| LT06 | FB9B | 4500±100 | 450±10 | 4300±150 | 342.2±11.9 | 4500±250 | 358.2±11.9 | 4.9±0.2 | 38.4±1.6 |
| LT07 | FBIH | 4300±100 | 430±10 | 4150±150 | 330.2±11.9 | 4800±250 | 382.1±11.9 | 4.4±0.2 | 35.0±1.6 |
| LT08 | FB12H | 4600±100 | 460±10 | 4300±150 | 342±11.9 | 5000±250 | 398.1±11.9 | 5.2±0.2 | 41.4±1.6 |
| LT09 | FB12B | 4700±100 | 470±10 | 4250±150 | 338.4±11.9 | 4700±250 | 374.2±11.9 | 5.4±0.2 | 43.1±1.6 |
| LT10 | FB9N | 4600±100 | 460±10 | 3500±150 | 278.5±11.9 | 3600±150 | 286.5±11.9 | 5.1±0.2 | 40.4±1.6 |
| LT11 | FB6N | 4400±100 | 440±10 | 3250±150 | 258.6±11.9 | 3300±150 | 262.7±11.9 | 4.5±0.2 | 35.9±1.6 |
|
|
